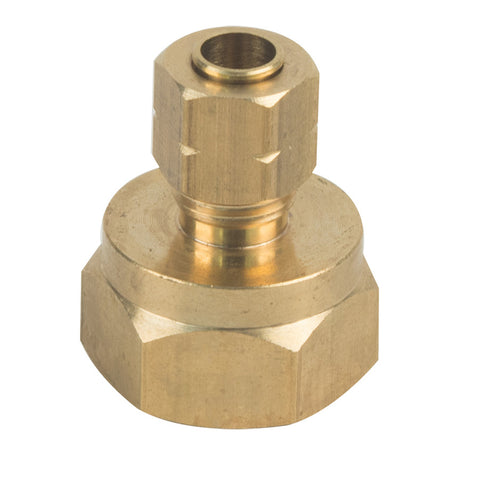

1/4-in x 1/2-in Compression Compression x FIP Adapter Adapter Fitting
- 1/4-in OD Tube x 1/2-in FIP Reducing Adaptor with Captive Sleeve
- Used to connect aluminum, copper and plastic tubing but not recommended for steel tubing
- Ideal for potable water, instrumentation, hydraulic and pneumatic systems
- Temperature rating: -65� to 250�F
- Pressure rating: 200 psi maximum
- No-lead product CSA certified to NSF 372, Low lead Content Certification Program – Plumbing Products Class 6853-01
| Package Quantity | 1 |
|---|---|
| Type | Adapter |
| Sub Type | Compression x FIP adapter |
| Diameter (End 1) | 1/4-in |
| Diameter (End 2) | 1/2-in |
| Diameter (End 3) | N/A |
| Fitting Type | Compression |
| Complies with Federal Lead Guidelines | Yes |
| NSF Safety Listing | No |
|---|---|
| Color/Finish Family | Gold |
| Minimum Working Temperature (Fahrenheit) | -65 |
| Maximum Working Temperature (Fahrenheit) | 250 |
| Inlet Thread Type | Female |
| Outlet Thread Type | Female |
| Degree of Angle | N/A |
| Permanent or Removable | Removable |
